Mobile Aisle Solutions

If ‘storage optimization’ is the topic, then Mobile Aisle Systems need to be in the mix for consideration. This concept and equipment has dramatically changed since its initial use with filing and library applications. Sizes, capacities, and safety features bring Mobile Aisle Storage to the industrial world with both light duty and extremely high capacity versions.

Montel high-density mobile aisle systems maximize the use of available space; by either increasing overall storage capacity, or by freeing up room for production equipment or other uses.

Increase storage capacity, or reduce floor space consumed by…

  • Mounting Static Shelving/Racking units on mobile carriages

  • Mobilizing carriages to travel on embedded or raised deck tracks

  • Moving carriages to create aisles as needed

Remove wasted space

Maximize space saved

Double the storage capacity

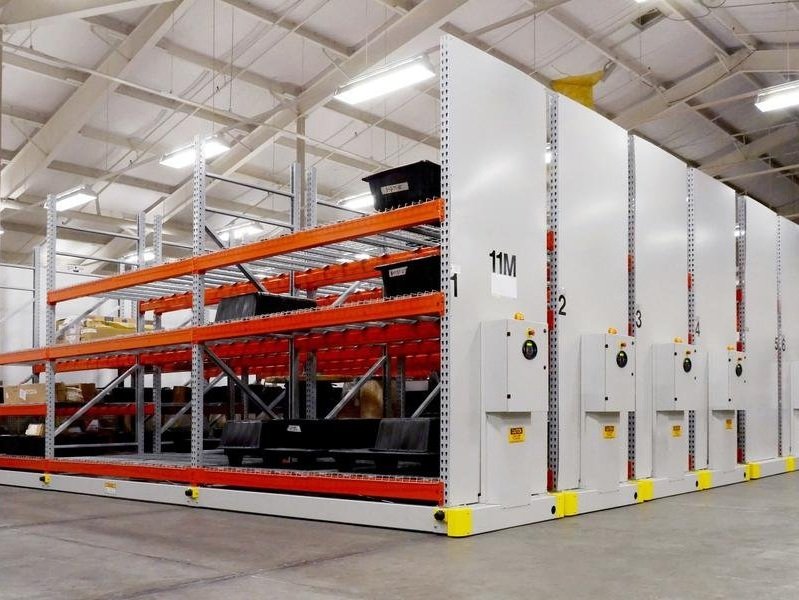

Motorized/Powered Mobile Aisle

SafeRak®

This heavy-duty industrial powered mobile racking system offers several unique features:

  • 32,000 lb or 60,000 lb load capacity per back to back bay

  • Use with Selective or Cantilever Racking

  • Carriage lengths up to 100ft

  • Track is recessed in concrete to allow forklift travel

  • A smooth operating system with adjustable speeds and smooth braking movement.

  • User-friendly controls with LED visual backlit indicators display.

  • Control via remote terminal; eliminate forklift wait time for an aisle to open

Safety: Adjustable distance measuring sensors, programmable PIN code control, ePulse™ remote monitoring software, Light Curtains, E-stops

Rack&Roll®

Rack & Roll® systems feature:

  • 8,000 lbs load capacity per back to back bay

  • Carriage lengths up to 45 feet

  • Track is embedded in concrete or fixed on a base

  • Various modes of operation, such as a simple 3-button system control (with or without PIN code, for restricted access) and a LCD touchscreen tablet control with limitless customized displays

  • Optional ePulse™ remote monitoring software allowing configuration and remote monitoring of the aisles

Safety: features which ensure compliance with the most stringent regulations, including Montel’s patented advanced Aisle LED Guard™ technology.

Mechanical Assist Mobile Aisle

With highly efficient gearing and a robust system design, even higher capacity applications can be handled without upgrading to motorized carriages. Equipment models and designs offer capacity ranges of 2,000lbs up to 16,000lbs per single bay.

Storage Types and Options Include: shelving (with or without drawers), drawers cabinets, wide span shelving, 4-post, raised deck, embedded track, enclosed end panels, back to back shelving, or single deep frames.

Application Types: Tire storage, parts department, maintenance and spare part storage

When to Use: Medium to light industrial applications, non-palletized items, hand picked goods, short ceiling height available, high SKU count with small area available.

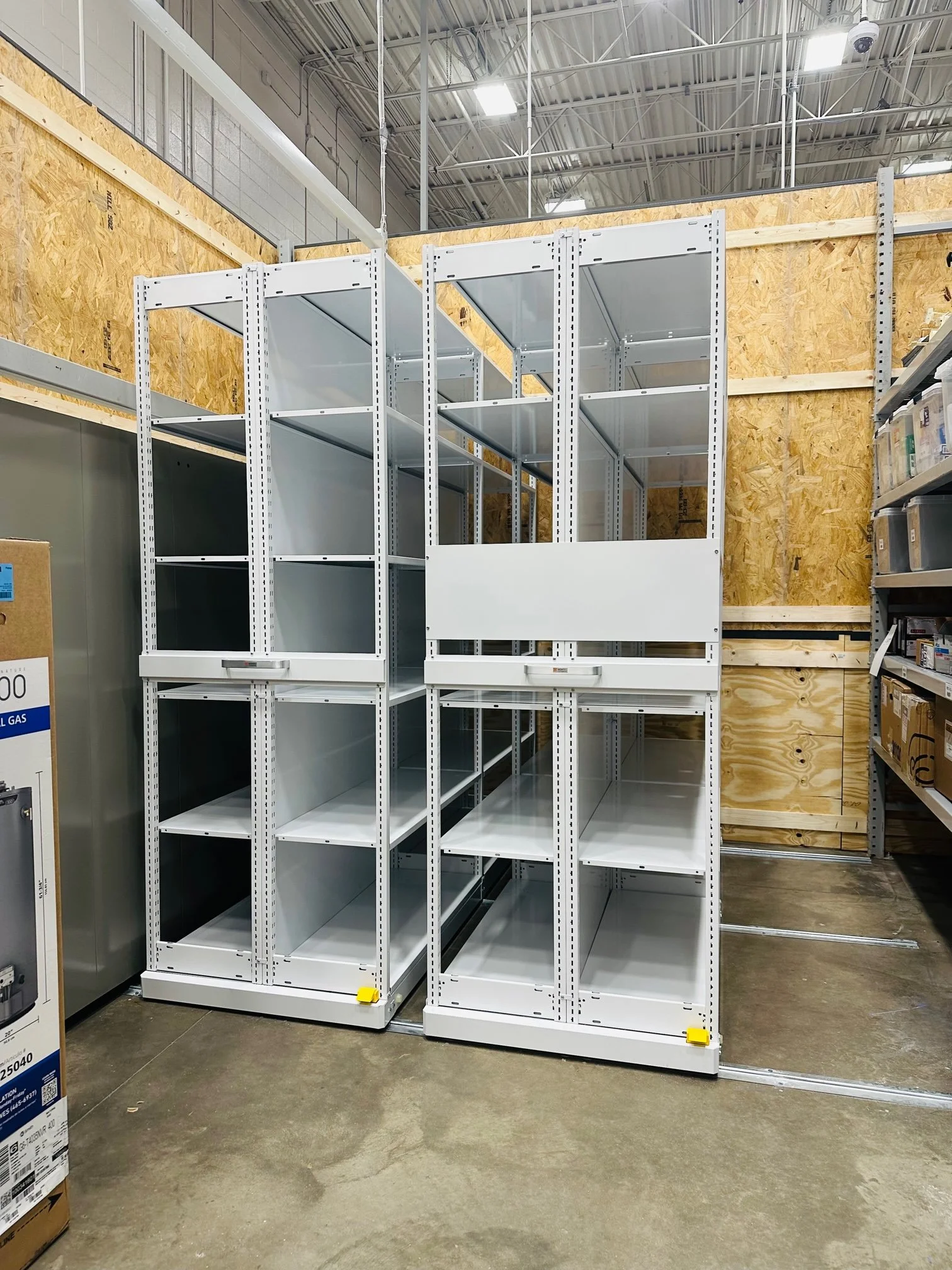

Manual Push/Pull Mobile Aisle

Smaller footprint and light-duty applications fit in the wheel-house of manual (push/pull) mobile aisle systems. Offers the benefits of high density mobile aisle storage, while keeping the system simple and economical. Capacities are available up to 2,000lbs per single bay; with carriage lengths maxing out at 24ft.

Storage Types Include: 4-Post shelving

When to Use: lower volume of inventory in a smaller area
